Wing Pump
IMPA code:
614014,614015,614016,614017,614018,614019

Commonly used for dispensing or transferring lubricating oils, antifreeze and other non-corrosive fluids.

Compatible with construction pump materials
Semi-rotary action
Cast-iron construction
Outlet/inlet Size: 1/2’’, 3/4’’, 1’’, 1 1/4’’, 1 1/2’’, 2’’

Technical Date:

IMPA Code Size Suction Capacity Lift Capacity Flow Rate
614014 1/2’’ 5m 14m 15L/Min
614015 3/4’’ 5m 14m 20L/Min
614016 1 6m 16m 25L/Min
614017 1 1/4’’ 6m 16m 28L/Min
614018 1 1/2’’ 6.5m 18m 65L/Min
614019 2 6.5m 19m 105L/Min

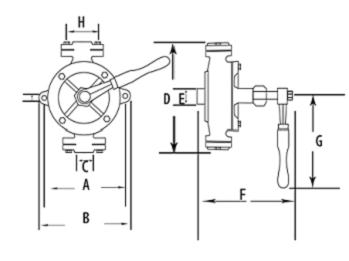

The structure Schematic diagram of the Wing Pump
