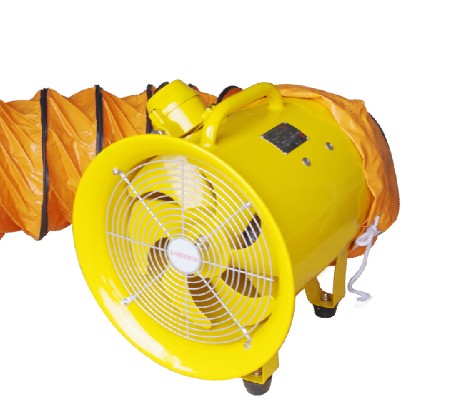

Electric Explosion-Proof Ventilation Fan ATEX

Electric Explosion-Proof Ventilation Fan ATEX
IMPA code:
591423,591424
Application:

Explosion-proof Ventilation Fan (ATEX Certificate) use in the condition of explosion-proof gas compound with factory II type,
Grade A, B and temperature T1-T4.

Technical Date:
Model diameter Voltage Frequency Speed W Capacity  Static
AM mm V Hz r/min w  m³/min  pa
SAM-11-25 250(10'') 110 50/60 2800 250 45 240
SAM-11-25 250(10'') 220 50/60 2800 250 45 240
SAM-11-30 300  (12'') 110 50/60 2800 350 65 280
SAM-11-30 300  (12'') 220 50/60 2800 350 65 280
SAM-11-40 400  (16'') 110 50/60 2800 750 96 400
SAM-11-40 400  (16'') 220 50/60 2800 750 96 400
SAM-11-50 500 (20'') 110 50/60 1400 550 130 230
SAM-11-50 500(20'') 220 50/60 1400 550 130 230
SAM-11-60 600(24'') 380 50/60 1400 1100 210 350
