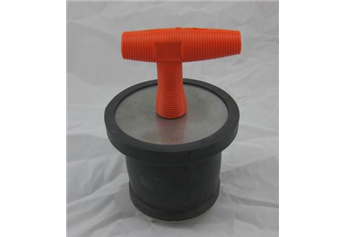

Stainless Steel Scupper Plug

Stainless Steel Scupper Plug
IMPA code:
232481B,232482B,232483B,232484B,232485B,232486B,232487B,232488B

Expandable stainless Steel scupper plug

High quality stainless steel plates
Expanding sleeves are made out of NBR oil resistant rubber
Components are precision machined to form a leak proof seal when expanded against a pipe
Wide Range covers all types and pipe schedules

Technical Date:

Code Model Dimensions mm Applicable Drain Pipe Size
D1 D2 L
232481B SSP-1 45 65 145 2'' Sch-80
232482B SSP-2 52 75 145 2'' SGP, Sch-40, 3'' SGP, Sch-40, 60,80
232483B SSP-3 65 85 160 2 1/2'' SGP, Sch-40, 3'' SGP, Sch-40, 60,80
232484B SSP-4 85 110 160 4'' Sch-60
232485B SSP-5 90 115 160 4'' SGP, Sch-40, 80, 5'' Sch-60
232486B SSP-6 110 135 160 5'' SGP, Sch-40, 80, 6'' Sch-60
232487B SSP-7 135 160 160 6'' SGP, Sch-40, 80
232488B SSP-8 165 200 170 8'' STPG-38, Sch-80, 160
