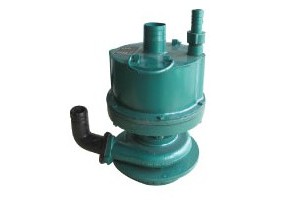

Pneumatic Sump Pump

Pneumatic Sump Pump
IMPA code:
591535, 591636, 591637

Pneumatic Sump Pump

Suitable to empty ballast tanks, bilge wells, etc. In emergency cases.

Often used for draining cargo holds during and after the washing procedure.

Especially preferred where an electric spark may risk ignition or explosion.

Air Pressure is 0.59 MPa(6kgf/cm2)


  IMPA Code

Capacity

Max. Air Consumption

Water Hose Size

Air Hose Size

Lift

Discharge

591635

15

    22m3/H

          2.0m3/min

50mm

3/4

591636

20

28m3/H

          3.4m3/min

50mm

3/4

591637

25

38m3/H

          4.4m3/min

50mm

1
