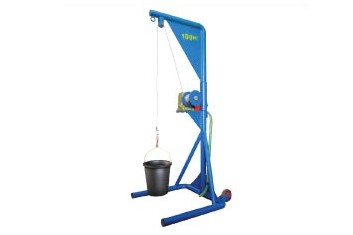

Pneumatic Driven Winch

Pneumatic Driven Winch
IMPA code:
590602,590603,590604,590605,590606,590607
Speedy Removal of Scale and Sludge
Standard Tank Cleaning Opening
Intrinsically Safe
Galvanized Steel Davit Assembly
Ergonomically and Dependability

Inch includes: Air Motor Winch Drum, Worm Gear, and Control Valve
Air Line Filter/Regulator/Lubricator
3/4 Ton Safety /Heck, 40 MTR Galvanized Wire Rope

Max. Pressure: 9.9kgf/cm2

IMPA Code Capacity Wire Rope Rope Dia.
 590603 100 40m 4mm
 590604 150 40m 4mm
590605 200 40m 6mm
590606 250 40m 6mm
590607 300 40m 6mm
590608 350 40m 6mm
590609 500 40m 6mm
590610 600 40m 6mm
